ADV® Tank Dish Polishing
Product Details
Tank Polishing Machine Color ：
- Red
- White
- Customized

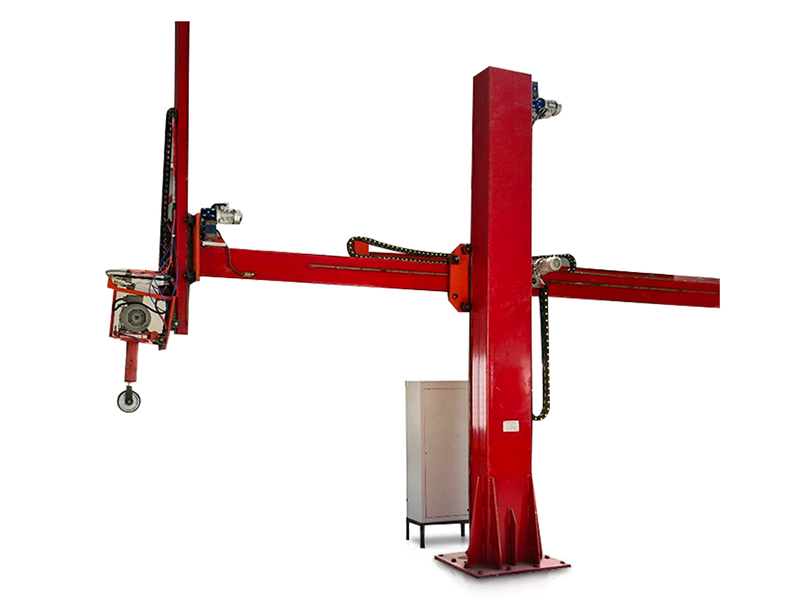

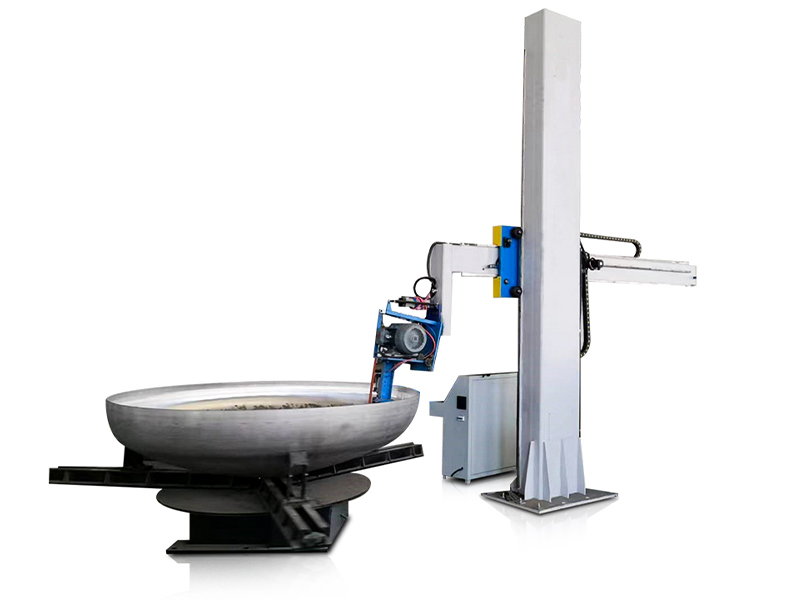

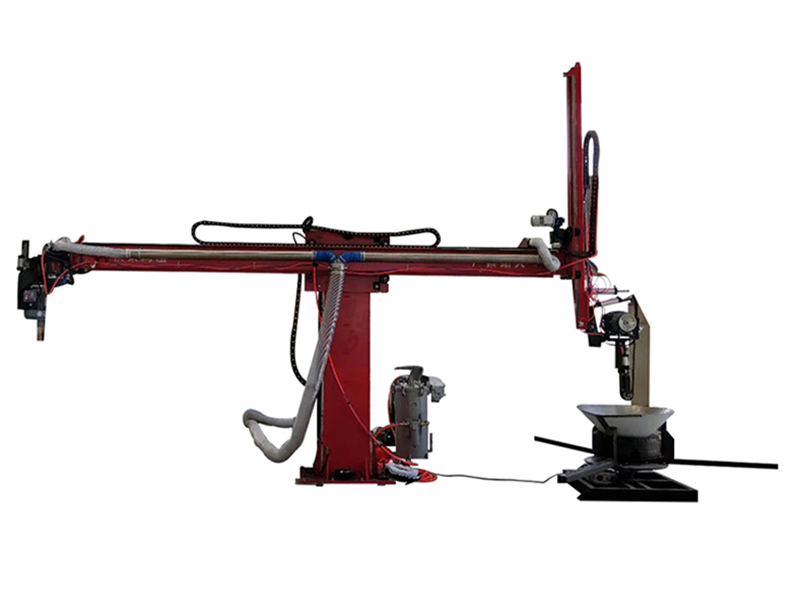

Automatic Stainless Steel Polishing and Grinding Machine for Dished End and Tank
Tank Polishing Machine Key attributes
- key selling points : Automatic
- core components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
- power (kw) : 11
- weight (kg) : 800
- Product name : cylinder head vertical surface grinding machine
- Application : ADV 701 dished head polishing machine
- Abrasive Belt Size : 1880*50mm/1700*30mm
- workpiece diametet range : 300-3000 mm
- Belts Grit : 20#-3000#
- Belt Line Speed : 0-30m/s speed control
- Polishing Wheel Motor Power : 4-11kw(variable frequency drive)
- Surface Roughnes : ≤0.1um(by many times)
- Accessories : abrasive belt,buffing wheel(mirror finish)
- Applicable Industries
- Printing Shops, Food & Beverage Shops, Food & Beverage Factory, Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Packaging and delivery
- Selling Units : Single item
- Single package size :160X260X258 cm
- Single gross weight : 1800.000 kg

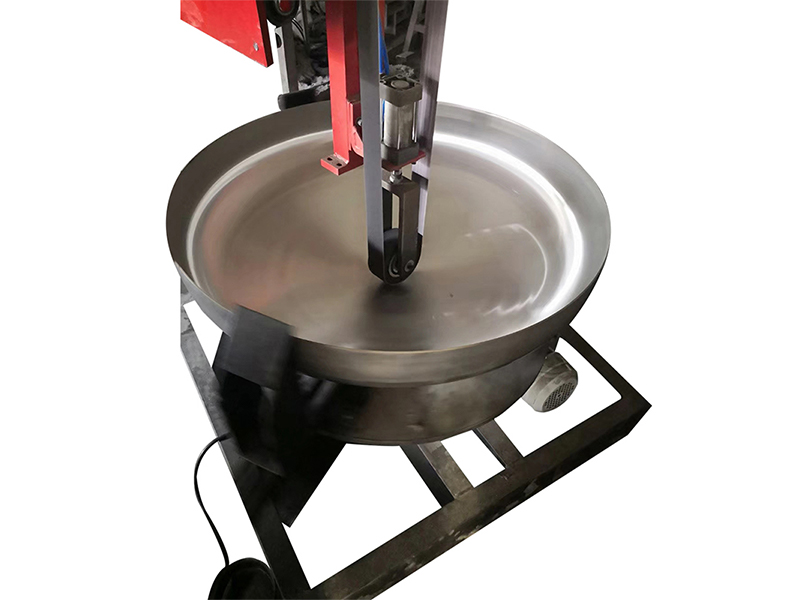

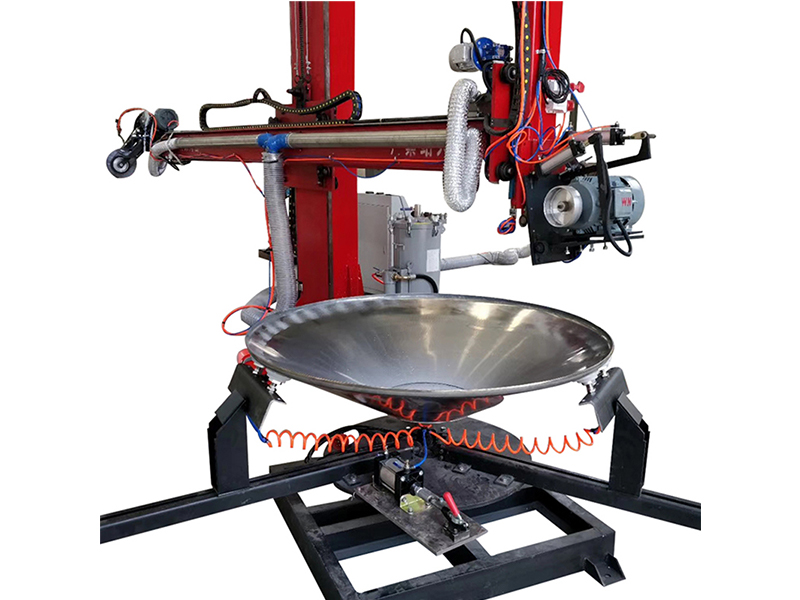

Dish head polishing head:
1. The dish head polishing head can polish and grind the inside and outside the tank.
2. According to the grinding and polishing requirements of the workpiece, the grinding head can be equipped with an abrasive belt or a buffing wheel.
3.Adaptive constant floating structure, can be adapted to the workpiece ovality ≤50mm.
There are two floating cylinders at the grinding head end (one polishing floating cylinders and other belt tensioning cylinder)
More Products

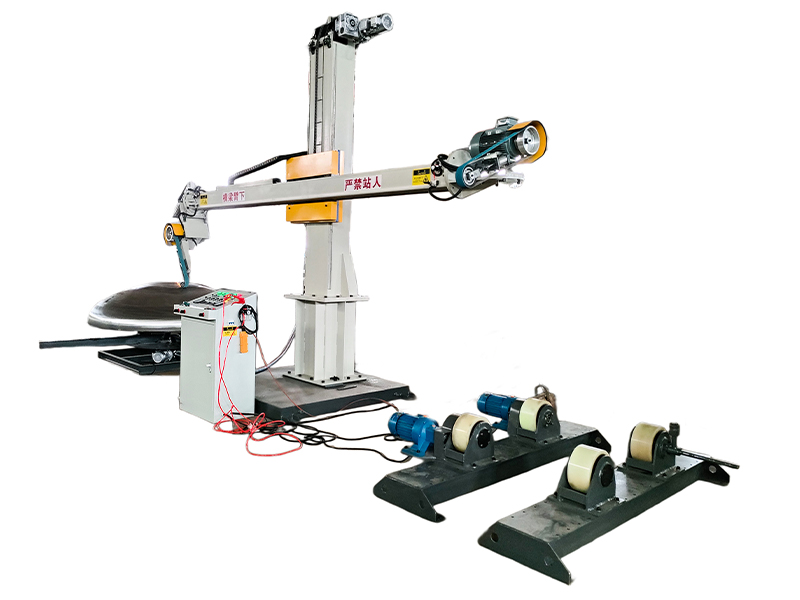

The machine is designed for dish end manhole external and internal grinding and polishing. It has VFD control, PLC control, and CNC control according to your different requirements on productivities. The available standard diameter for the tank is 300mm-3000mm or customized. The dish head elliptical polishing machine is widely used in medical area，chemical，environmental purification，food，cookware, beverage and water filter，etc.

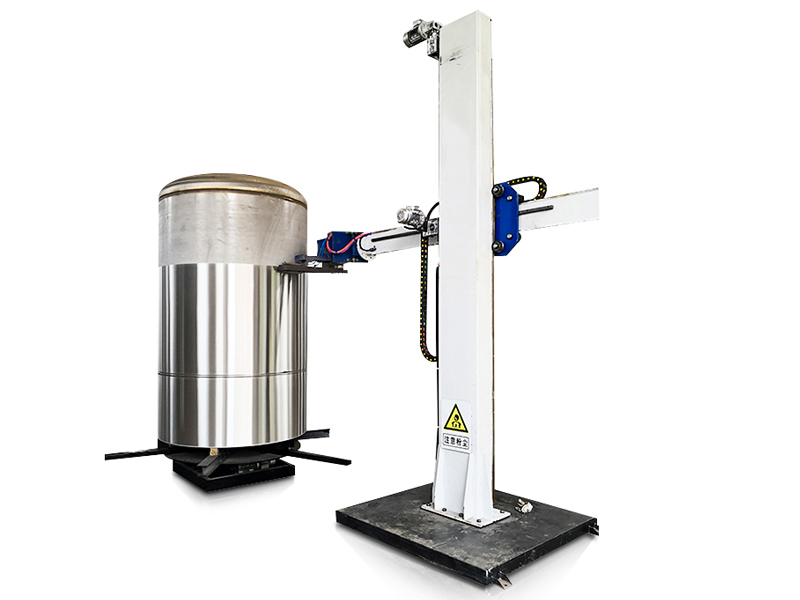

The machine is designed for tank external and internal grinding and polishing. It has VFD control, PLC control, and CNC control according to your different requirements on productivities.
The available standard diameter for the tank is 219mm-3000mm or customized. CNC cylinder polishing machine is widely used in medical area，chemical，environmental purification，food，beverage and water filter，etc.
