ADV® 108-6 Tube Pipe Polisher
Product Details
Round tube polishing – Quality and productivity: straight tube(Long or Short), multi-station wet or dry finishing
Max 5- 100mm
Straight tubes
Optional 1 up to 10 stations

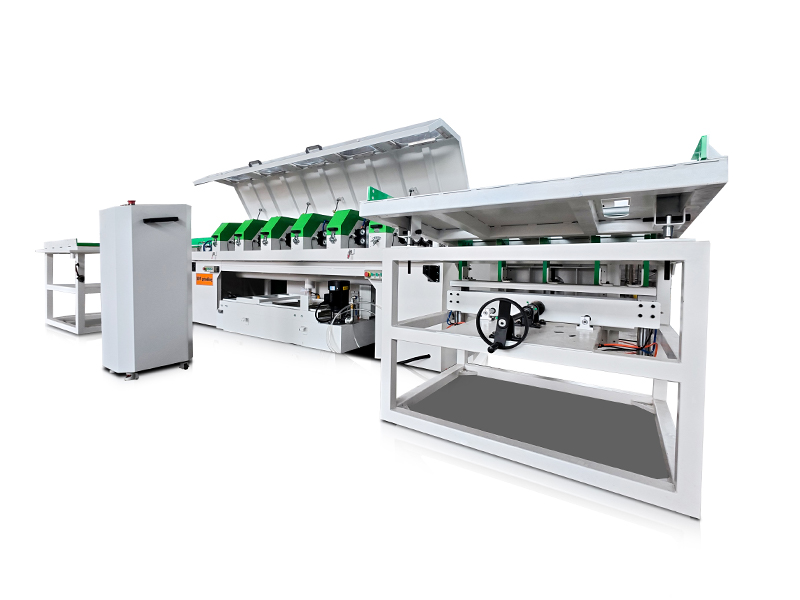

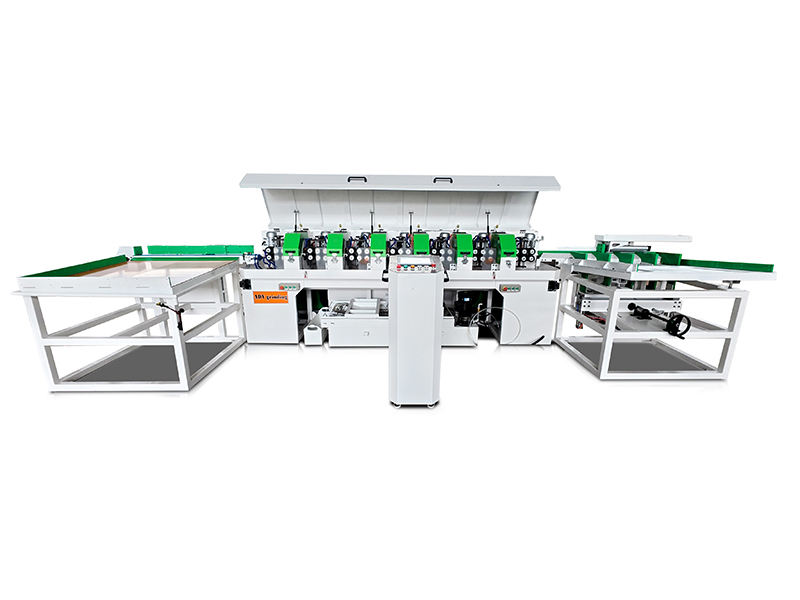

The ADV 108-6 round tube, multi-station wet finishing machine, available with 1 stations (ADV 108-1 TUBE POLISHER) and 6 stations (ADV 108-6 TUBE POLISHER), is equipped with the ADV planetary system and enables a faster finishing job than single–station machines.

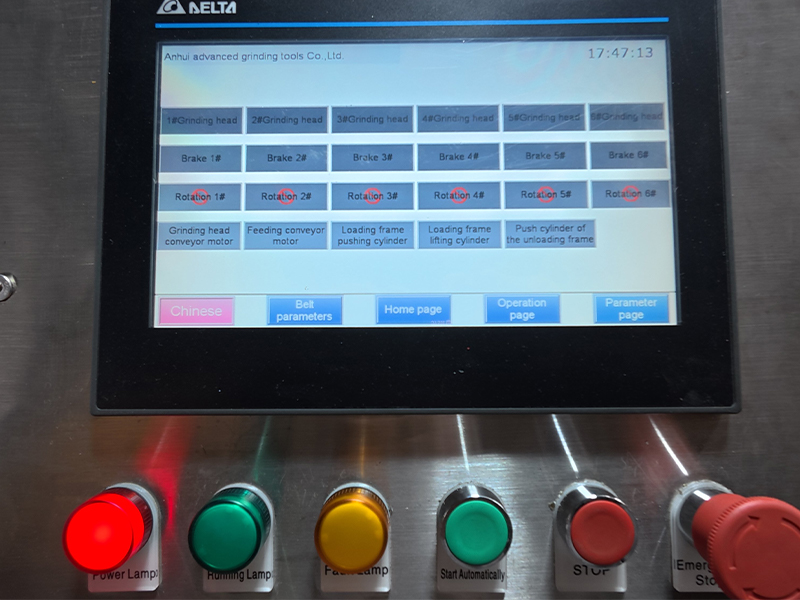

Automatic work set-up and control of all the information about the tube finishing are done in a mobile panel with an integrated touchscreen. Completely independent finishing stations. Final finish in only one go.
The wet-operation system enables faster cooling of the tube as well as the possibility of working different types of metal simultaneously.
Machine parameters:
| No | Item | Specification |
| 1 | Model | ADV 108-6 |
| 2 | Available diameter | 5-100 mm |
| 3 | Total motor power | 26 kw |
| 4 | Abrasive belt motor power | 2.2 kw*6 |
| 5 | Speed of abrasive belt | 7.8-18 m/s |
| 6 | Rotary brush motor power | 1.5 kw*6 |
| 7 | Feeding system motor power | 0.37 kw*7 |
| 8 | Speed of feeding | 0.7-4 m/min |
| 9 | Size of abrasive belt | 940*50 mm |
The video of the 108-6 tube polishing machine
- To reduce temperature and prevent dust in the grinding area, a closed-circuit water-cooling system is employed. Water is sprayed onto the finishing area, filtered, and then pumped back into the machine. Also you can select dry tube polishing by your needs.

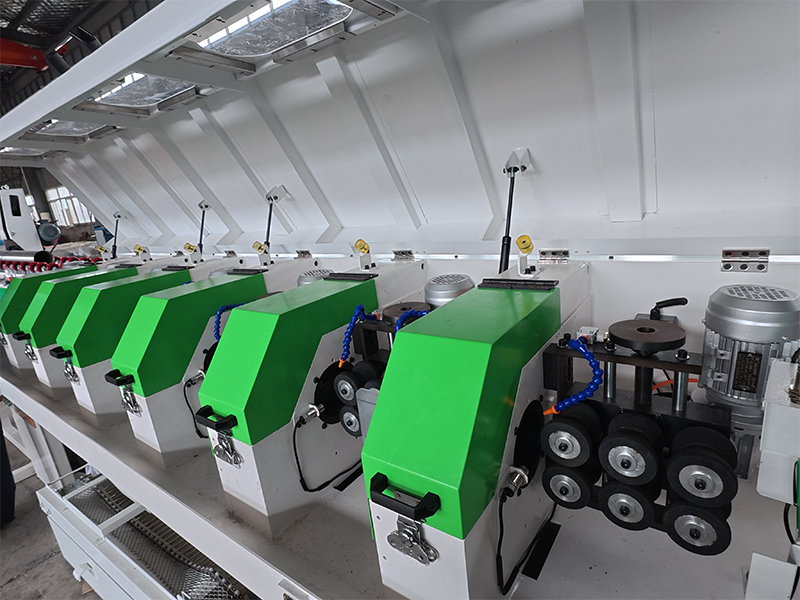

- With the 108 Planetary System the tube is not spinning. The abrasive belts rotate around the tube while it is safely transported by the feeding systems.
- The 108-6 is designed to work under intensive conditions, even multiple shifts a day, consistently delivering a multi-grain finish tube after tube.

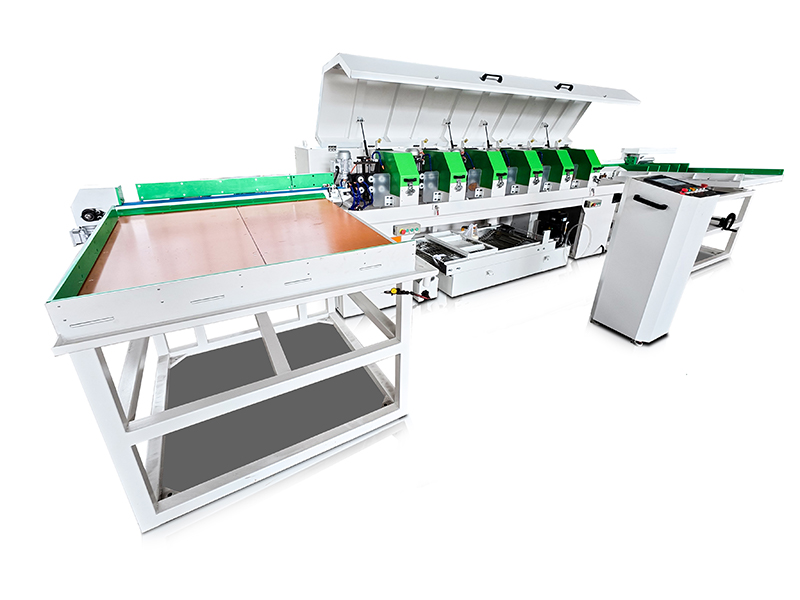

- It is possible to equip the 108-N with tables for easier tube loading, unloading and storage.

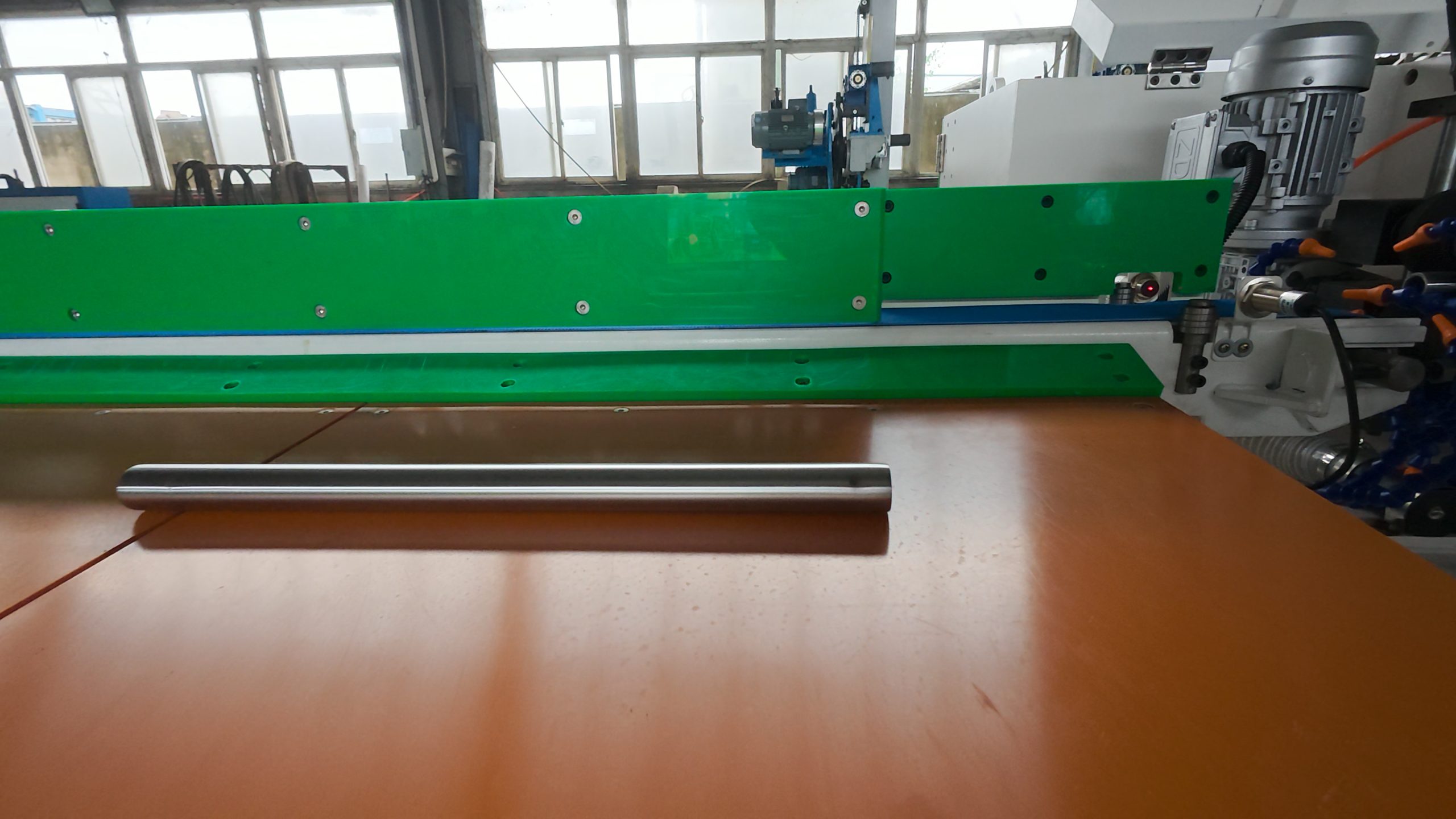

Tube Finished – work platform 1 :
Tube Finished – work platform 2 :
