ADV® MS Long Belt
Product Details

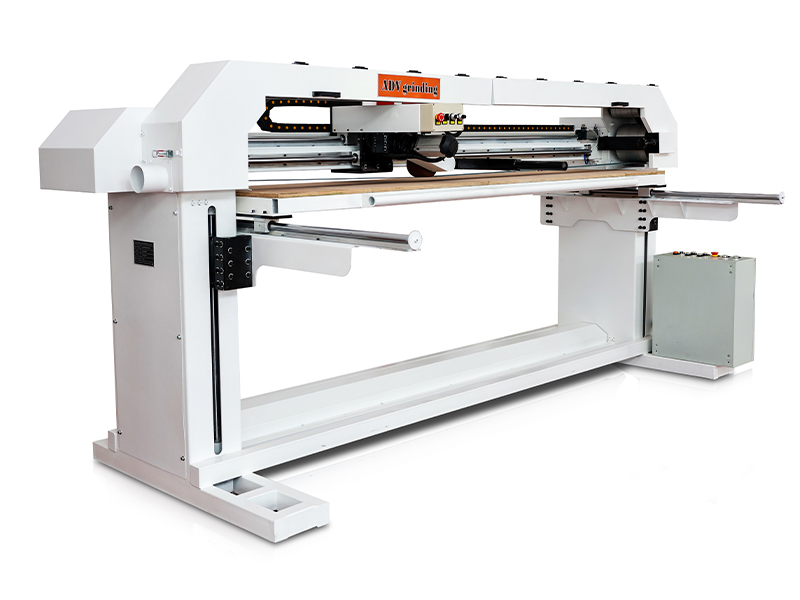

Long Belt Sanding Machine,1 or 2 abrasive belt stations .
- Twin long belt sanding machine for metal sheets or welded structures weld grinding and finishing.
- Metal sheets or welded structures weld grinding and finishing.

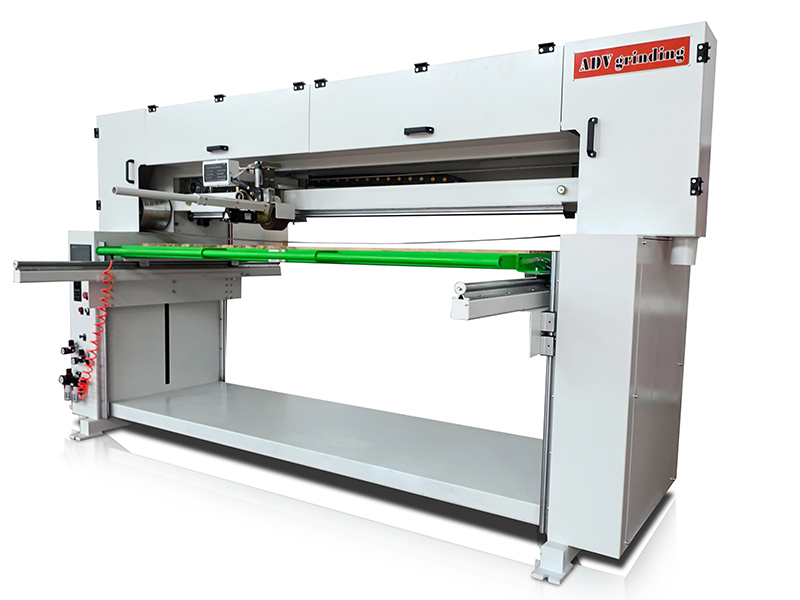

- The ADV MS SANDER is a long belt sanding machine with a flexible abrasive belt that enables flat surface finishing, as well as corners or the edges of materials.
- The MS Sander has a (999→3500)x800mm working table which makes it possible to finish large structures.
- This machine is ideal for irregular shapes polishing as well as for weld removal. The flexible and adjustable table is useful when, because of the large dimensions of the materials to be finished, you are unable to move the piece.
- With the MS BELT GRINDER you move the table by motor and use the adaptability of the long belt together with several grinding tools to finish the areas you need.
Interchangeable finishing tools

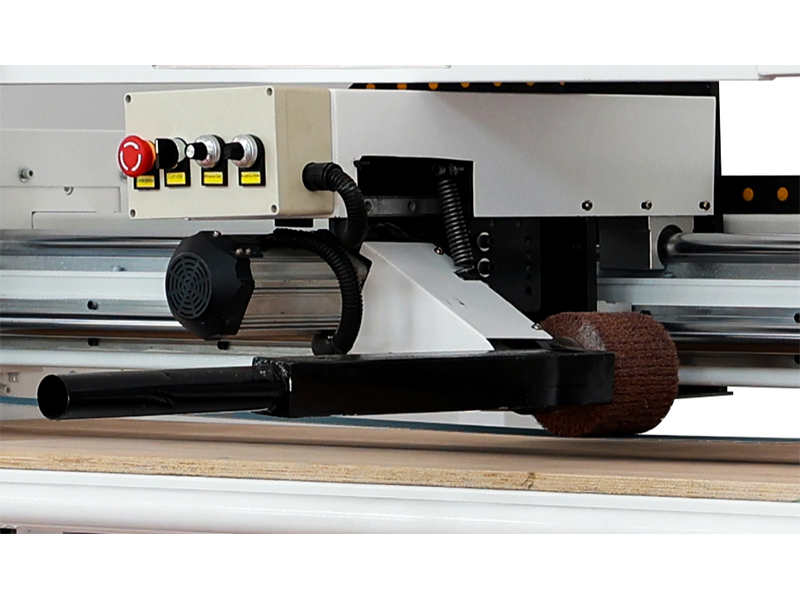

- Single carrier in counterweight system with an easy clamping to use the flat finishing tool or the contact roller.
- double abrasive belt station with
contact roller to reduce interchange
steps and optimize operator time
Control panel

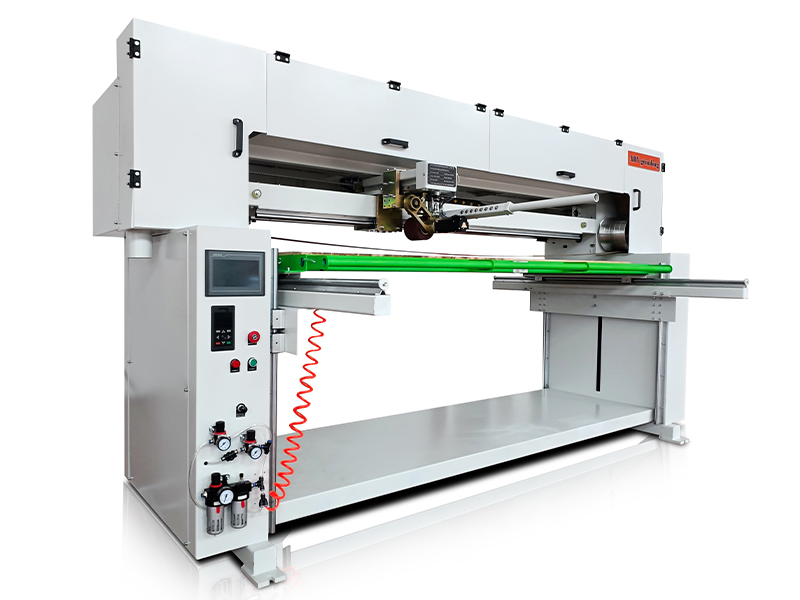

The Long Belt Sanding machine has a control panel at the center of the table, making it easy for the operator to adjust level of the table or the speed abrasive belt.
TECHNICAL DETAILS:
| No | Item | Specification |
| 1 | Model | ADV MS-2000*1000 |
| 2 | Available length | 2000 mm |
| 3 | Available width | 800 mm |
| 4 | Available height | 650 mm |
| 5 | Sanding belt motor power | 3 kW (Variable frequency drive) |
| 6 | Hairline polishing wheel motor power | 1.2 kW (Variable frequency drive) |
| 7 | Lifting motor power | 0.75 kW |
| 8 | Abrasive Belt rotation speed | 1400 rpm |
| 9 | Wire drawing wheel speed | 1400 rpm |
| 10 | Machine size | 3200*1750*1800 mm |
| 11 | Machine weight | 1000 kg |
Machine standard model:
| Machine model | Workbench area | Lifting height | Abrasive belt motor power |
| ADV MS3700 | 990*610mm | 300mm | 2.2kW |
| ADV MS4000 | 1200*610mm | 300mm | 2.2kW |
| ADV MS4600 | 1450*610mm | 300mm | 2.2kW |
| ADV MS5950 | 2200*610mm | 300mm | 3kW |
| ADV MS6500 | 2500*610mm | 300mm | 3kW |
| ADV MS7600 | 3000*610mm | 300mm | 3kW |
| ADV MS8500 | 3500*610mm | 300mm | 3kW |
The Video of Long Belt Sanding Machine
- Surface finishing and weld grinding of flat surfaces and corners
- abrasive belt tension is exerted
pneumatically. It enables different
levels of belt tensioning - Metal surface grinding, brushing, pattern sweeping treatment, various metal sheets, metal boxes, and other surface brushed treatments, after the workpiece is processed, the surface is clean and smooth, and the surface texture is clear, which greatly improves the aesthetics and increases the product selling point.
STANDARD EQUIPMENT
_ Double abrasive belt station
_ Flat grinding tool and contact roller on counter
_ weight system
_ Flat manual grinding pad
_ Pneumatic belt tensioning,variable abrasive belt speed and motorized height adjustment
AVAILABLE ACCESSORIES
_ Deburring and edge rounding tool
_ Handling clamping device for 3D parts
_ Dedicated rack for handling device/table storage
_ Second tool carrier in counterweight system
_ Free area below table
Flexible handling of metal surfaces (flat and curved) ：
