ADV® 503 Mirror Polishing
Product Details

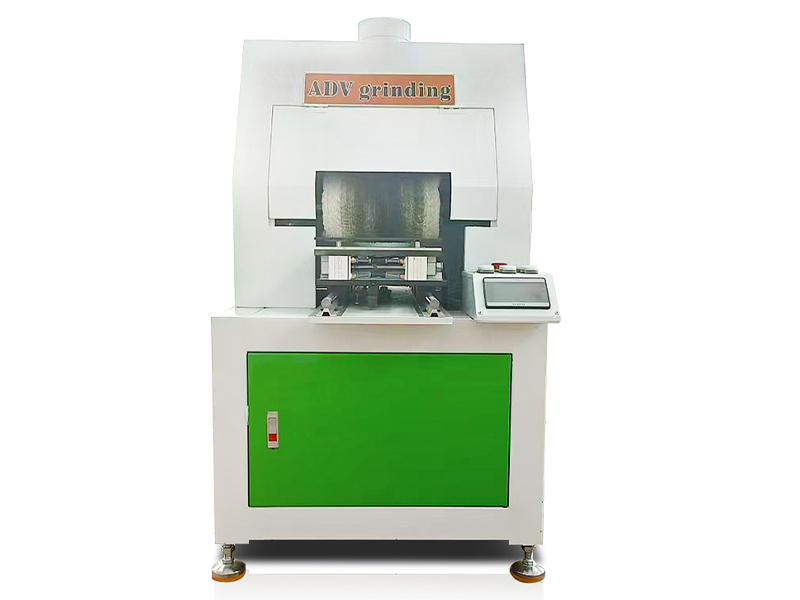

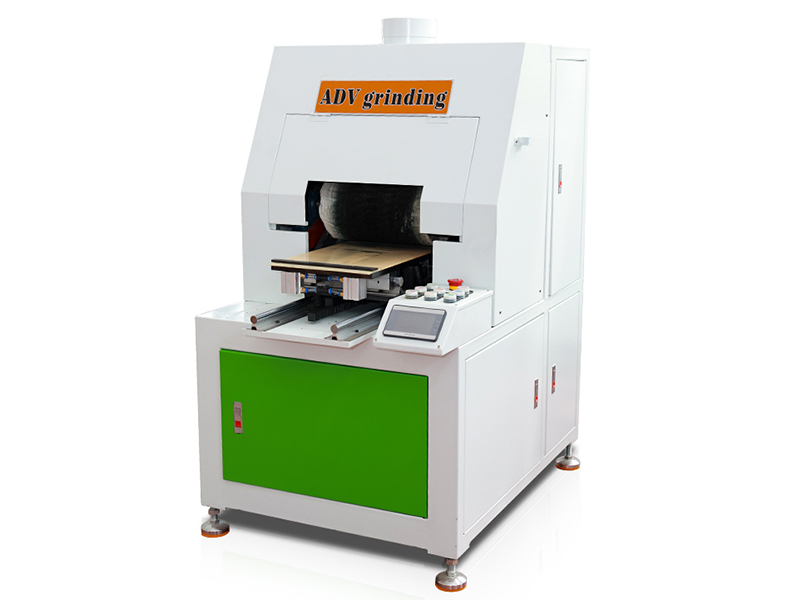

Mirror Polishing – flat surface metal parts mirror polishing machine
- Suitable for all kinds of metal plane mirror finish
- This system mainly use for different thickness of workpiece.Thickness can be 1-80mm

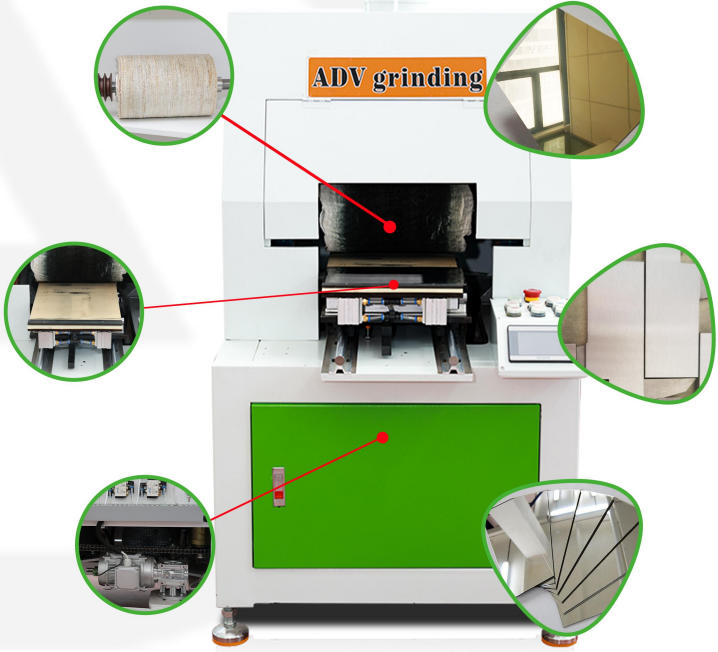

- The adjustment for different thicknesses is made by the movement of the buffing stations(moves forward and backward automatically and swings lefand right), keeping the conveyor belt always at the same level. This helps the work of long metal flat without having to adjust roller tables.
General technical info :
Size of machine: 1300*800*1350mm(L*W*H)
Engine motor power: 3 KW*1
Feeding motor power: 0.55KW*1
Swing motor power: 0.25KW*1
Voltage and frequency: 380V/50HZ or customized
Spindle speed: 1430r/min
Feeding speed: 3.5m/min (Frequency control speed)
Swing frequency:72times/min (Frequency control speed)
Work table height: 750mm
Available roughness: ≤0.2µm(Through surface friction many times)
Polishing efficiency: 0-3 minutes per piece
The Video Of The ADV 503 Mirror Polishing
Application Industries:
ADV 503 sheet mirror polishing machine are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
FAQ
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A: Please tell us your product information and polishing process, then we can recommend the suitable machine to you.
Q: How about warranty?
A: 2 years quality guaranty. Lifetime technical support and consumables at the lowest price.
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
